High-frequency ultrasound is used when the finest particles and minimal film contamination need to be cleaned from sensitive or finely structured surfaces. This is the case, for example, in semiconductor production, microsystems technology and electronics, precision optics, analysis, laser and vacuum technology as well as medical technology. In order to reliably achieve the cleanliness requirements defined for perfect functioning and to avoid damaging or impairing the sensitive components, regular checks of the vibration characteristics and the calculation of cleaning-relevant key figures are essential quality parameters. For these applications, Ecoclean has extended the measuring range of the innovative Acoustic Performance Measurement (APM) technology, which was previously used to measure ultrasonic frequencies up to 132 kHz inline without contact, to two megahertz on the basis of laser acoustics.
Reliable detection of the frequency spectrum proven by test series

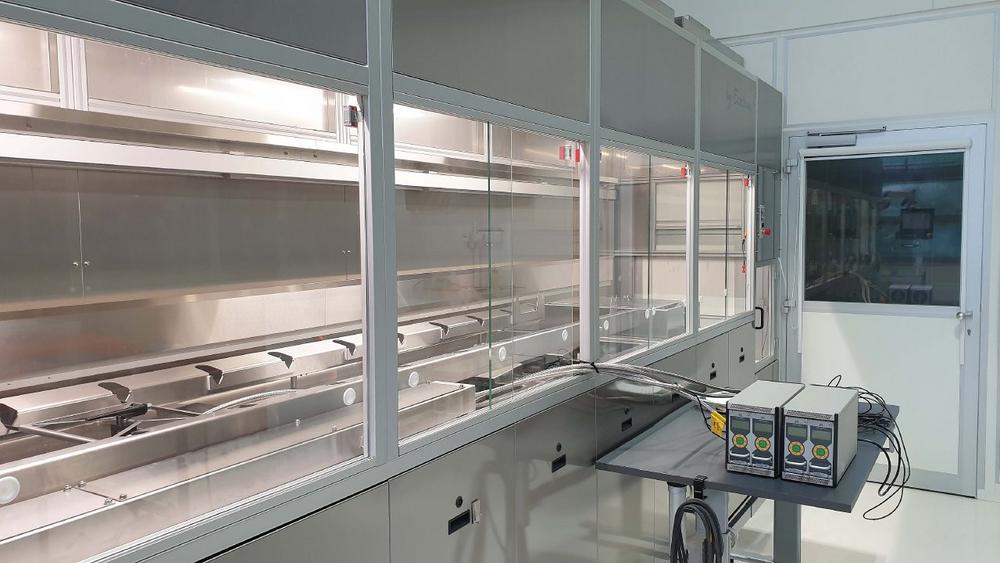

The development of the new APM measuring system was preceded by a series of tests with a laser-acoustic microphone. The tests were carried out in an ultrasonic multi-bath immersion system UCMSmartLine and with ultrasonic systems with 500 kHz and 1,000 kHz plate transducers. In addition, plate transducers with oscillation frequencies of 40, 80 and 120 kHz already present in the cleaning system were included in the tests and the results were compared with the previous APM technology with condenser microphones.
On the one hand, the tests proved that the signal-to-noise ratio in the entire frequency band is high enough to detect sound waves up to 2 MHz. On the other hand, the aim was to determine at what distance from the bath surface the laser acoustic microphone must be used so that an adequate frequency spectrum can still be calculated despite the increasing attenuation of the sound waves by the air as the frequency increases. Due to the high sensitivity of the laser acoustic microphone, the distance is comparable to the condenser microphone used to measure low-frequency ultrasound.
Advantages due to contactless and motionless measurement
In contrast to hydrophones, measurement with the APM solution takes place without direct contact with the medium and without movement. This results in various advantages. For example, contamination of the media by the measuring system is ruled out and it can also be used in applications with aggressive chemicals without contaminating the bath or damaging the measuring technology. The motionless measurement also ensures that it can be carried out reproducibly and inline. In addition, APM technology makes it possible to detect ultrasonic frequency and sound pressure even through "walls". It can therefore also be used in closed cleaning and rinsing tanks, which are required, for example, when using pressure change processes (vacuum flood cleaning processes such as PPC – Pulsated Pressure Cleaning), as well as in chamber cleaning systems. Appropriate manual calibrators are available for a quick and simple function check of the laser acoustic and condenser microphones used for the APM system on site.
Stationary measurement or at time intervals – also as a service
The measuring system is available both as a stationary solution and in a portable version for occasional checks. In the stationary version, the microphone is attached to the automatic conveyor. The ultrasonically equipped cleaning and rinsing tanks are then approached one after the other and the measurements are carried out without contact so that the results are comparable. The values determined for ultrasonic frequency and power are transferred to the software of the measuring solution, evaluated by algorithms and compared with the previously defined and stored target values and saved. In the event of deviations, the system issues a warning or error message.
Users who use the classic APM system for low-frequency ultrasound but also use ultrasound with frequencies above 132 kHz, for example in rinsing processes, can simply swap the microphone and evaluation unit and thus monitor both low-frequency and high-frequency ultrasound.
For measurements with the portable version, the microphone is aligned to the respective ultrasonic tank using a holder and records the vibration spectrum in the tank. During analysis and evaluation by the software, the measured actual values are compared with the target parameters defined as reference values for the respective treatment station. All measurements are documented in PDF reports for seamless verification.
The company also offers mobile control measurements as a manufacturer-independent service for cleaning systems in which ultrasound is installed.
The SBS Ecoclean Group develops, produces and markets forward-looking machinery, systems and services for industrial part cleaning and surface treatment applications. Its globally leading solutions help companies around the world in conducting efficient and sustainable manufacturing to high quality standards. The client base comes from the automotive industry and its suppliers in addition to a broad range of market sectors ranging from medical equipment, micro technology and precision devices through mechanical and optical engineering to power systems and aircraft industry. Ecoclean’s success is based on innovation, cutting-edge technology, sustainability, closeness to the customer, diversity and respect. The Group employs a workforce of approx. 900 at its 12 sites in nine countries worldwide.
