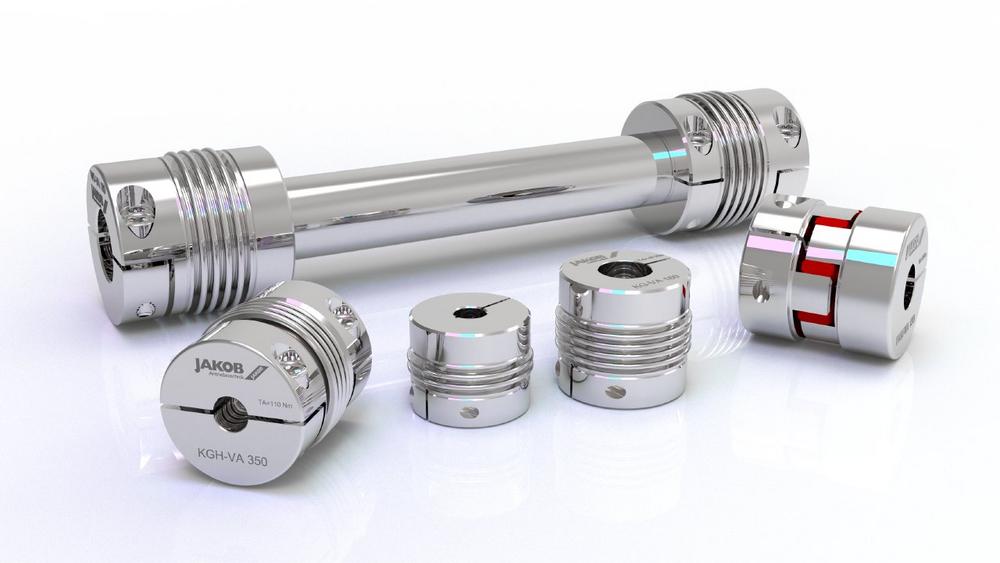

The KG-VA series can be used at temperatures up to 350 °C and is designed for shaft diameters of 10 to 90 mm and torques of 30 to 1000 Nm. The KGH-VA series is wear-free and maintenance-free, can also be used up to 350 °C and covers shaft diameters of 7 to 85 mm and torques of 10 to 1200 Nm. It is available in variable lengths with 2- or 4-wave bellows.
The MKG-VA is a miniature metal bellows coupling with clamping hub, available with 2- or 4-wave bellows, which can transmit up to 15 Nm and can be used up to 350 °C.
New to the range is the EKM-VA elastomer coupling, which can transmit torques of up to 500 Nm and can be used up to temperatures of 90 °C. It has an easy-to-assemble clamping hub.
The WD-VA distance coupling is available in variable lengths of up to 3 m and ensures backlash-free torque transmission. It can also be used up to 350 °C and is suitable for shaft diameters from 7 to 85 mm with torques from 10 to 1200 Nm.
One of the great strengths of JAKOB Antriebstechnik GmbH is the tailor-made design and manufacture of couplings that are optimally tailored to the individual needs of customers. The experienced sales and design team enables fast and efficient processing. If you have any technical questions, JAKOB experts are also available by phone, and personal advice and custom-made products are possible at any time upon request.
JAKOB Antriebstechnik GmbH
Daimlerring 42
63839 Kleinwallstadt
Telefon: +49 (6022) 22080
Telefax: +49 (6022) 220822
https://jakobantriebstechnik.de/
Marketing
Telefon: +49 (6022) 2208-55
E-Mail: moeller@jakobantriebstechnik.de
