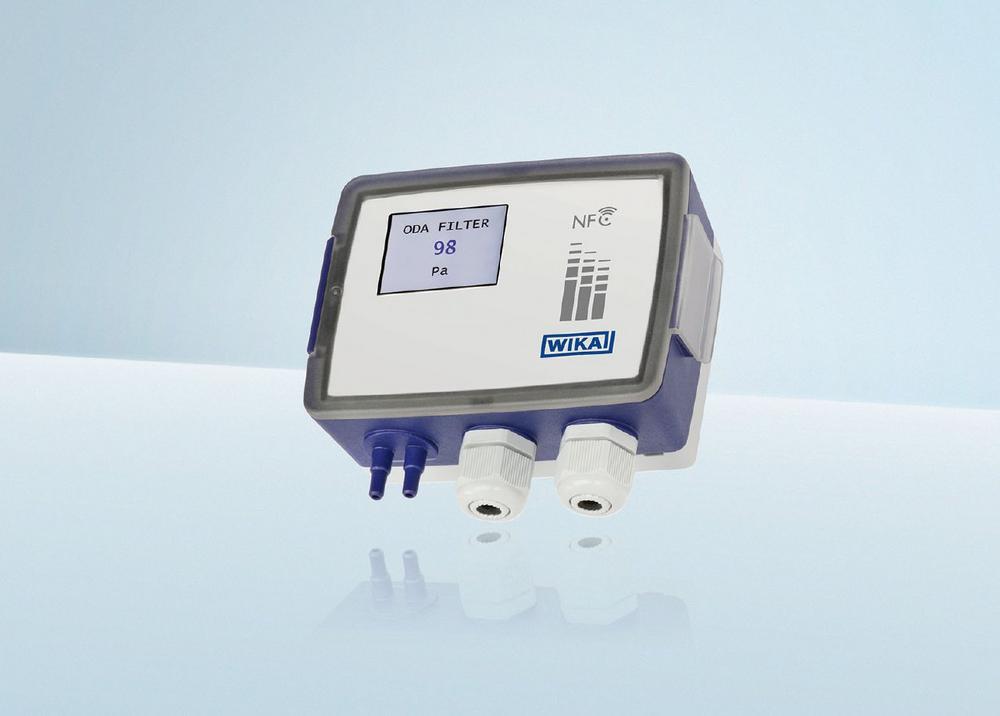

The A2G-500 measures differential pressure, gauge pressure and vacuum with a measurement accuracy of ±0.5 %. The A2G-520 is used on components such as ventilators, where it measures the pressure difference and calculates the air flow precisely based on a calibration factor. The A2G-540 is used to control differential pressure and air flow.
Analogue, digital or radio
The A2G family offers a future-proof solution, since the new instruments support all signal transmission paths. They can be integrated into control systems or an IIoT cloud environment via an analogue or digital signal as well as via radio (LoRaWAN®).
Modularly expandable
The modular design allows users to extend functionality as required by means of additional options such as display, relays or additional inputs and outputs. Commissioning and operation using the WIKA app is simple and user-friendly. The weatherproof instruments are robust and, thanks to automatic zero point setting, even maintenance-free. The traffic light function of the display shows critical plant statuses at a glance.
With 11,200 employees, the WIKA Group is a global market leader in pressure and temperature measurement and sets the standard in the measured variables of level, force and flow, and in calibration technology. The broad portfolio of high-precision products, solutions and services makes the family-run business a strong and reliable partner. WIKA’s unique experience and know-how make sensing technology smarter, add more value and prepare it for a sustainable future: This is “Smart in sensing”.
