Interference in complex machines and systems can affect smooth operation. In view of the increasing data transmission and operating frequencies, it is becoming increasingly important to ensure the proper functioning of electrical devices and systems. It is therefore essential to use filters directly at the housing input to ensure trouble-free operation. For this purpose, CONEC offers special D-SUB connectors with filter technology.
Standard filter connectors are typically configured as low-pass filters, as they allow low-frequency signals to pass through but reduce signals with frequencies that exceed the cut-off frequency. For this purpose, CONEC provides the so-called C-filter as standard. In this single-stage low-pass filter, each contact of the connector is connected to a capacitor to the housing. Depending on the requirement, there are additional variants available, such as the two-stage LC and the three-stage PI filter, which are also available in various configurations as part of the standard program.
The difference between the various filter configurations lies in their performance. When there is a wide separation between the wanted signal and the interference frequency, a single-stage C-filter is often sufficient to solve the EMC problem.
As the separation between the useful and interference signal frequencies decreases, multi-stage filter configurations are used.
The dimensions of CONEC filter connectors are usually compatible with unfiltered connectors. This allows systems to be easily expanded with filtered interfaces without much effort.
These filter systems are mainly used in medical technology or in environments prone to interference.

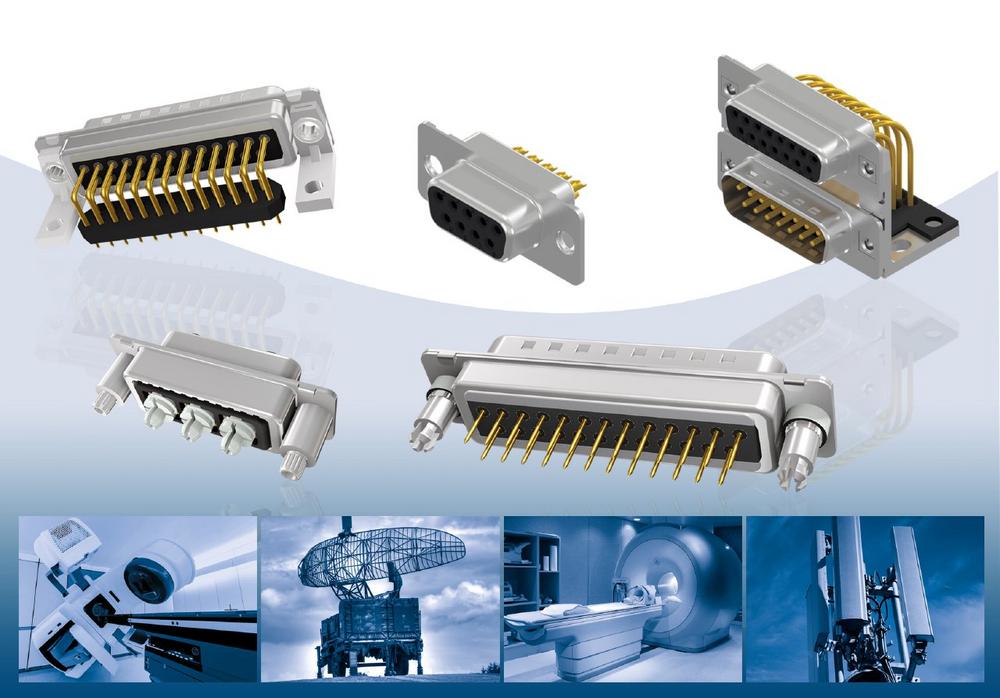

CONEC offers a wide variety of D-SUB connectors with integrated filter technology. These connectors are available in various configurations, including the standard D-SUB filter as C, LC, and PI filters. The capacitance values for these filters are 370 pF, 830 pF, and 1300 pF. Additionally, there is the option of the D-SUB Filter Combination, which is exclusively available as a C filter.
For applications requiring a particularly robust mechanical interface, CONEC also provides IP67 D-SUB filter connectors. These connectors offer reliable EMC and IP67 protection. The integrated filters of these connectors are available with capacitance values of 180 pF, 370 pF, 830 pF, and 1300 pF.
Further capacitance values and specific customer applications can be created and offered upon request.
Advantages
- Filtering directly at the interface
- No PCB redesign
- Filter adapter for retrofitting existing systems
- Up to three-stage low-pass filters
- Selective filtering
- Mixed capacities
- Low magnetic versions
- Space saving on the circuit board
Applications
- Medical technology
- Telecommunications
- Test and diagnostic equipment
- Power supplies
- Industrial interfaces
- Military
For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.
The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.
As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.
In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.
CONEC is a global player with its own subsidiaries and/or production sites in Canada, China, the Czech Reblublic, Poland, Slovakia and Mexico.
The product portfolio includes connectors of the following categories:
• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions
The company’s quality management ensures high quality by applying the international standards according DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
