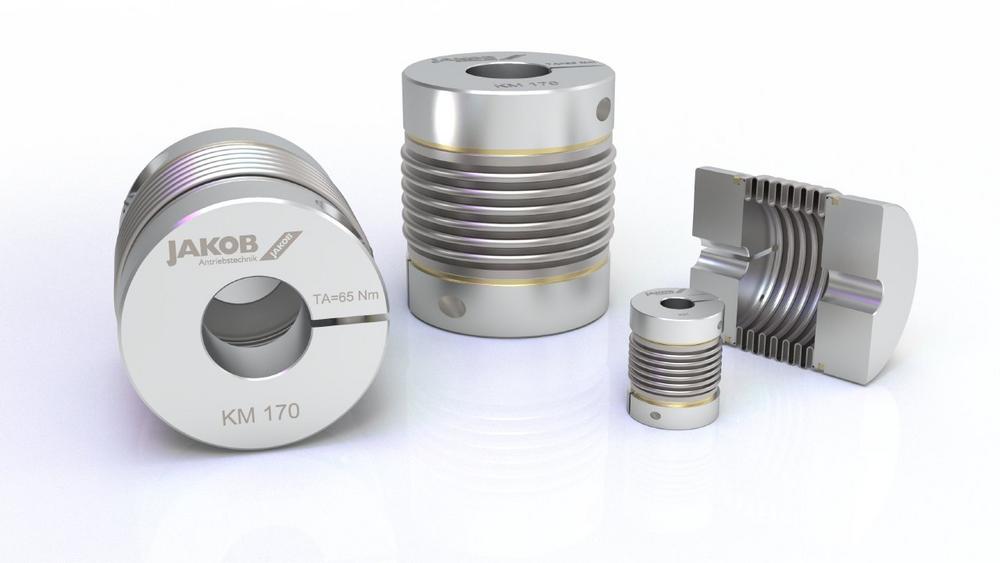

The clamping hub of the KM is equipped with the innovative Easy-Clamp-System, allowing for easy mounting with sufficient clearance. The necessary clamping force for torque transmission is ensured by a single, radially accessible screw per hub. This simple and reliable connection enables straightforward installation even in confined spaces with just a few steps. To achieve a low moment of inertia, the hubs are made from high-strength aluminum.
The connection between bellows and hub is achieved through the backlash-free swaging process. Unlike adhesive bonds, this joining method is indefinitely durable under critical operating conditions (-40°C to +200°C, chemicals, etc.) and can safely transmit the torque of each bellows position into the hub.
Metal bellows couplings of the KM series are available with nominal torques ranging from 0.4 Nm (MKM) to 1300 Nm (KM).
