Key applications for the KTS1890 include gaming and workstation notebooks, desktop PCs, docking stations, monitors, conferencing systems, gaming consoles, and any USB Type-C Dual Role Port design with PD 3.1 EPR 28V input.

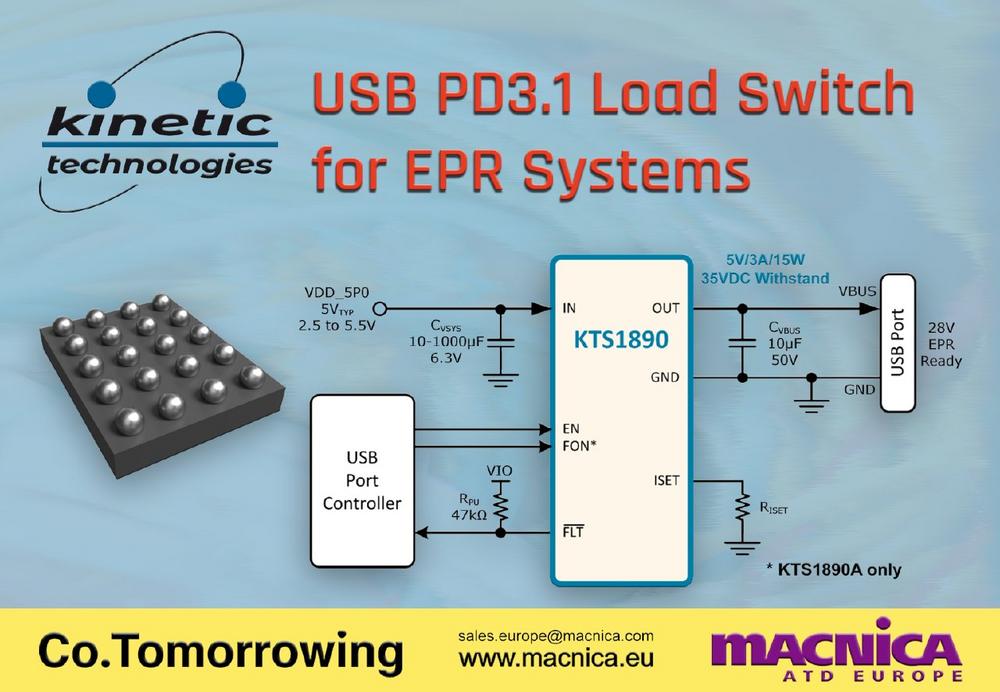

The KTS1890 is a USB VBUS safety management load switch for 15W current-source output in systems with 28V EPR current sink input. The input operating range is 2.5V to 5.5V, but the output withstands up to 35VDC at the USB port. Current limit protection (CLP) is adjustable from 400mA to 4.0A. Low on-resistance minimizes heat and voltage droop. Soft-start (SS) limits inrush current. Reverse-current protection (RCP) acts as a 20mV “ideal diode” with fast recovery.
Karl Volk, System Applications Director at Kinetic Technologies, says, “The combination of our new KTS1890, together with our KTS1898 and KTU1128 parts, provides a chipset trio setting a new benchmark for protection at every 28V USB EPR port, ensuring the quality and operational integrity of your products.”
Additional integrated safety management for the KTS1890 device includes ultra-fast over-current protection (OCP), short-circuit protection (SCP) during and after soft-start, over-temperature protection (OTP), and integrated transient voltage suppression (TVS) for IEC industry standard ±30kV ESD and ±130V surge protection.
KTS1890 Product Features
- 5V to 5.5V Operating Voltage Range at IN
- 35VDC Abs. Max. Rating at OUT
- Adjustable Current Limit Protection (CLP)
- 400mA to 4.0A via RISET
- 27mΩ typ. On-Resistance from IN to OUT
- Soft-Start (SS) Limits Inrush Current
- “Ideal Diode” Reverse Current Protection (RCP)
- 20mV Forward Voltage and 15μs Fast Recovery
- 8A, 150ns Over-Current Protection (OCP)
- Short-Circuit Protection (SCP) during and after SS
- Over-Temperature Protection (OTP)
- Transient Voltage Suppression (TVS) at OUT
- ±130V Surge Protection (IEC61000-4-5)
- ±30kV ESD Contact Discharge (IEC61000-4-2)
- ±30kV ESD Air Gap Discharge (IEC61000-4-2)
- EN Enable Logic Input
- FON Fast ON Logic Input for Fast Role Swap (FRS)
- KTS1890A version only
- FLT Fault Open-Drain Logic Output
- Hiccup Mode Auto-Retry after Faults
- -40°C to 85°C Operating Temperature Range
- 20-bump WLCSP 2.49 x 1.99mm (0.5mm pitch)
