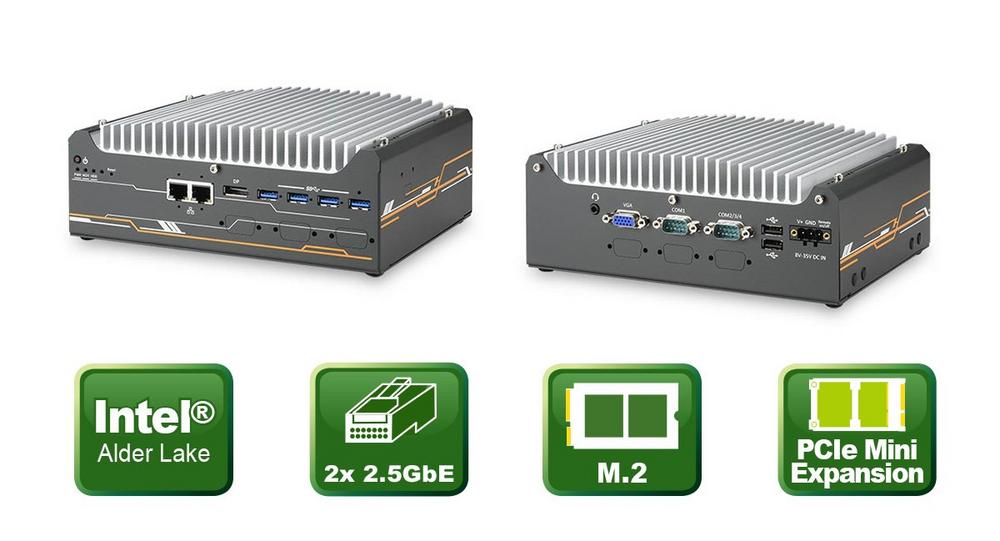

Compact, fanless embedded system

The Nuvo-9501 supports the 12th generation of Intel® CoreTM I processors. A high-performance variant with Intel® CoreTM i9-12900TE, a sixteen-core processor with a maximum clock frequency of 4.8 GHz, or a less expensive variant with Intel® Celeron® G6900TE, a dual-core processor with a clock frequency of 2.4 GHz, are available. The RAM can be expanded to up to 32GB on a DDR4 SDRAM basis, with a clock rate of 3200 MHz.

For storage, a slot is provided for installing a 3.5" or 2.5" SATA HDD/SSD. Peripheral devices can be connected to the Nuvo-9501 via four USB 3.2, two USB3.2, the VGA interface, the Displayport or the COM interfaces. A serial interface with RS-232/422/485 standard is installed, three three-wire RS-232 or one RS-422/485 can be attached to the housing. Furthermore, the Nuvo-9501 offers two full-size mini PCIe sockets, as well as an M.2 2230 E Key slot for expansion.

The metal housing measures 212x165x80 mm and is designed for an operating temperature range of -10°C to +60°C and can optionally be DIN rail mounted. On customer request, ICP Germany delivers the embedded PC pre-equipped with suitable industrial working and mass storage devices.

Specifications

• 12th generation Intel® Core™ i3/i5/i7/i9
• Intel® H610E chipset
• Up to 32GB DDR4 SDRAM
• 2x 2.5 GbE (Intel ® I226-V GbE)
• 4x USB 3.2
• 2x USB2.0
• 1x VGA, 1x Displayport
• 1x RS-232/422/485
• 3x RS-232 or RS-422/485

Applications

• Display systems
• Info terminals
• Self-Service Terminal
• Automation Controller
• Embedded Device Dashboard
• Input device for production lines
