Typical areas of application requiring constantly higher data transmission rates are, for example, vision and scanner systems for production monitoring and real-time data evaluation. Entertainment systems in trains, which provide passengers with a reliable internet connection at their seats, and surveillance cameras also place high demands on data transmission and the robustness of the connectors.

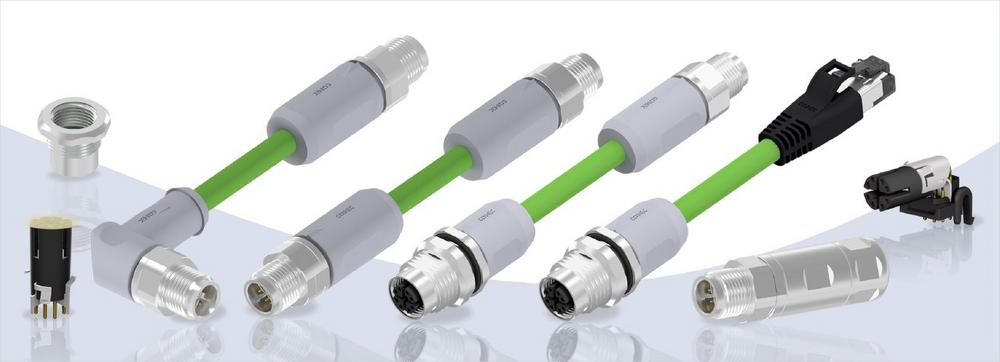

With the M12x1 x-coded product series, CONEC offers a portfolio of CAT 6A-capable connectors.
The connector series includes socket connector versions incl. SMT and THR variants, a field attachable connector with crimp termination as well as overmoulded axial and angled connectors.
Therefore it is possible to completely map the transmission path of a device installed in the field and the associated processing unit using CONEC connectors.
Socket connectors | overmoulded, angled two-piece, SMT/THR
In the product area of socket connectors, axial SMT and THR variants are available in addition to angled socket connectors/insulation bodies with print connection and an overmoulded version with cable.
With the SMT/THR variants, the user can mount the board equipped with the insulation body in different socket geometries. CONEC sockets are suitable for combined mounting and ideal for designs where the M12x1 thread of the housing is directly moulded on, thus creating maximum design flexibility.
The dual and symmetrical arrangement of the contact springs refines the previous shield concepts through an axial and radial connection to the socket side and is the result of the requirement of low-resistance shield transmission.
Due to the radial shield concept, a considerable tolerance range can be compensated during installation without negative effects on the contact resistances. Electromagnetic separation of the four wire pairs according to CAT 6A is nevertheless 100%.
Automatic assembly of the connector is possible despite the spring elements. The board assembler can rely on a suction system and use the adhesive pad applied by CONEC to grasp the connector for the assembly.
As standard, the degree of protection is IP67 when mounted to the housing and IP20 in the mating face when not screwed in.
Connectors field attachable:
The CONEC M12x1 connector with crimp termination can flexibly accommodate wire cross-sections from AWG28 to AWG22. The advantage of the turned crimp contacts is a reliable and gas-tight connection to the stranded wire, which ensures consistently low contact resistance even under extreme conditions.
The X-coded, field attachable connectors are protected against loosening due to vibrations during operation by means of tactile vibration protection. The connector housing is completely made of metal and thus fully shielded. The connectors are designed for cable diameters from 4.5 to 8.3 mm and the shield connection is 360° on the full circumference. The field attachable connectors are tested according to railway approval DIN EN 45545-2:2016 R24 (flammability) and IEC 61373:2010-10 (shock/vibration).
Connectors overmoulded:
CONEC currently offers various pre-assembled cable lengths of the processed PUR cable with strand cross-sections 4x2xAWG26. The UL-listed cable has an S/FTP twisted pair construction and is suitable for temperatures in dynamic and static environments from -40°C to +80°C.
In addition to pure X-coded axial and angled connection cables, the M12x1 – RJ45 overmoulded variant is also available.
With the X-coded connectors in compact design, CONEC meets all requirements according to IEC 61076-2-109 and with regard to electromagnetic compatibility according to CAT 6 A standard up to 500 MHz. When mated, the connector complies with protection class IP67.
Advantages:
- Robust design with the smallest possible installation space
- High transmission rates up to 10 Gbit/s
- No independent loosening of the screw connection due to self-locking
- Flexible assembly in the field
- Application-related, high-quality cable qualities
- Full shielding against external influences
- Standardised according to IEC 61076-2-111
- RoHS compliant
- Protection class IP67
Fields of application:
- Automation technology
- Railway technology
- Building automation
- Communication technology
- Industrial interfaces
- Security and monitoring systems
- Transport industry
For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.
The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.
As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.
In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.
CONEC is a global player with its own subsidiaries and/or production sites in Canada, China, the Czech Reblublic, Poland and Slovakia.
The product portfolio includes connectors of the following categories:
• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions
The company’s quality management ensures high quality by applying the international standards according DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
