More performance, more connectivity and simplified configuration

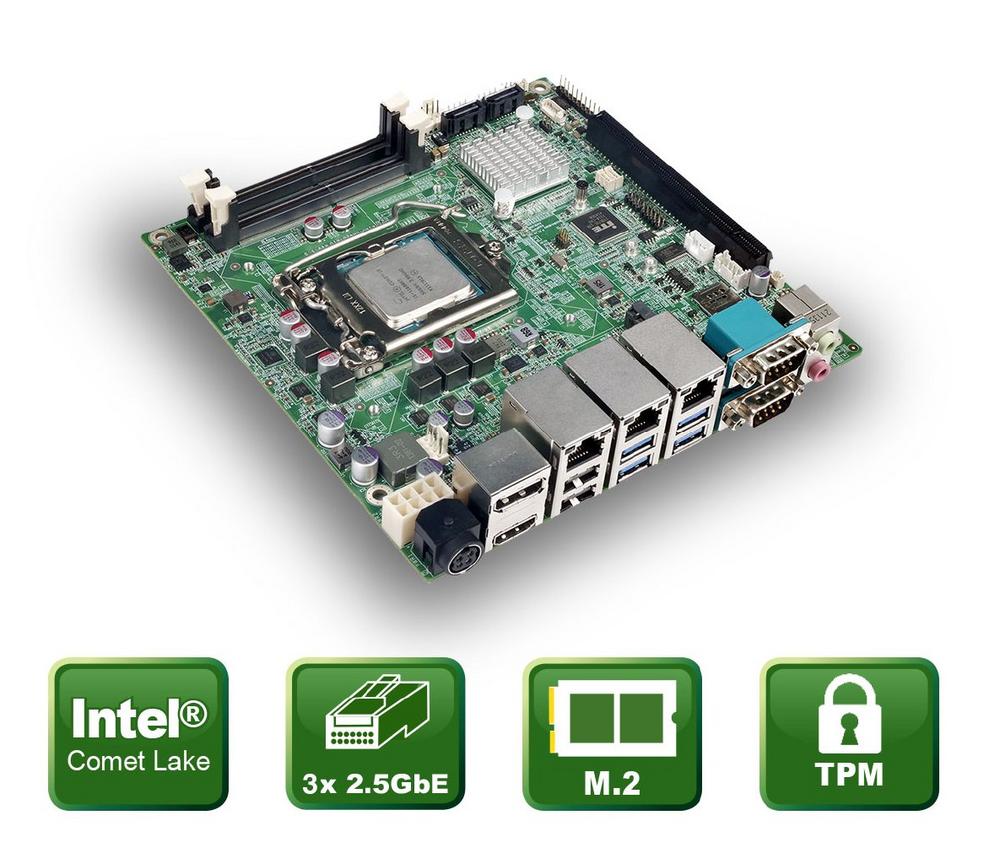

Up to 30% performance increase when using an Intel® CoreTM i5, more connectivity through triple Ethernet ports and a simplified configuration through the new tBIOS. Three advantages of the KINO-DH420 from ICP Germany. The mini-ITX board KINO-DH420 supports the 10th generation Intel® CoreTM I processors with a thermal design power of up to 65 watts. Comparing the ninth to the 10th generation Intel® CoreTM i5, this results in a performance increase of 30%. With the corresponding Intel® CoreTM i7 it is 28% increase and in the top CPU segment with Intel® CoreTM i9 still 21% more performance. The KINO-DH420 supports up to 64GB of DDR4 SODIMM RAM at 2933MHz in dual-channel mode on its two RAM sockets. Connectivity has not been spared. Three 2.5GbE network interfaces provide ample connectivity to various networks and devices. The 2.5x increase in speed minimizes the bottleneck in network connections. The board also offers four USB3.2 Gen1 (5Gb/s), four USB2.0, three RS-232, one RS-422/485, two SATA interfaces with RAID 0 and 1, I²C, SMBus, and 8 digital EAs. For add-on cards, there is a classic PCI Express x16 slot of the third generation, an M.2 2230 Type A with PCIe x1 and USB2.0 signal, as well as an M.2 3042/3052/2242/2280 Type B with SIM card holder and PCIe x2 and USB2.0 signal. The integrated Intel® HD graphics unit offers dual display support at a maximum resolution of 4K. Both an HDMI port with a resolution of up to 4096×2160 pixels and a display port with a maximum of 4096×2304 pixels are available for connecting displays. Intel® PTT provides the necessary support for the new Windows 11 operating system. To simplify commissioning and subsequent maintenance, the mainboard is equipped with a touch-enabled BIOS. The graphically designed BIOS supports touch screens or the mouse for simplified configuration. The KINO-DH420 can be operated with 12 Volt voltage in a temperature range of 0 to 60°C. On customer request, ICP also delivers the KINO-DH420 as a bundle with processor, industrial RAM and storage medium.

ICP. Industrial Computer Products …by people who care!

Specifications

• Standard Mini-ITX form factor
• Intel® Comet Lake 10th Gen. Core^TM i9/i7/i5/i3 LGA CPU up to 65 watts
• Intel® H420E chipset
• 64GB DDR4 SO-DIMM memory
• tBIOS (Touch-Enabled BIOS)
• Dual Display Support
• Tripple 2.5GbE
• 1x PCIe x16, 1x M.2 3042/3052/2242/2280, 1x M.2 2230,
• USB, HDMI, DP, RS-232, RS-422/485, EAs, I²C, SMBus

Applications

• Panel PC and Embedded Systems
• Compact PC Systems
• Industrial PC Systems
• Image and Video Processing
