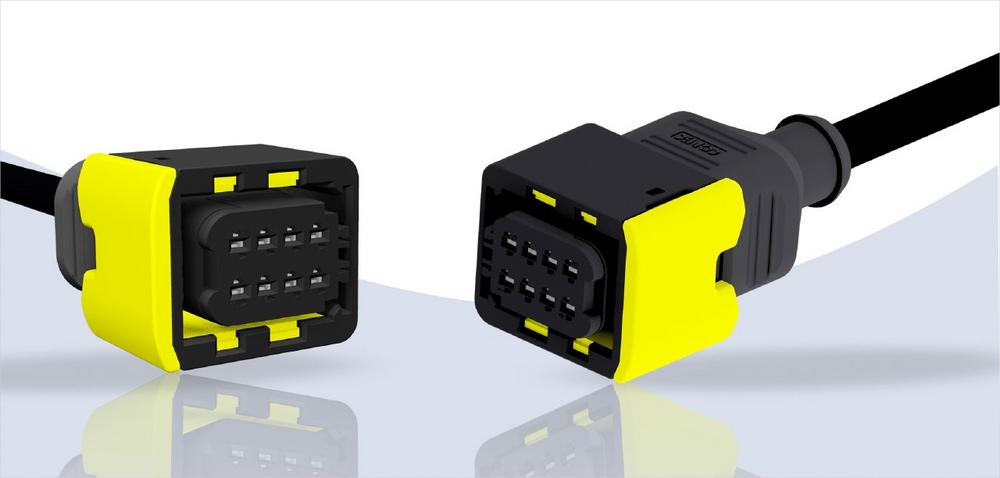

HDSCS Connectors overmoulded

In the commercial vehicle industry and in agricultural, construction and municipal technology as well as in the Off-road sector, connector systems are required that offer extremely high performance even under the most difficult environmental conditions, such as at sub-zero temperatures or in dusty, hot environments.

HDSCS (Heavy Duty Sealed Connector System) connectors or complete HDSCS systems with cable are designed precisely for this purpose.  Thus, via the HDSCS interface in heavy-duty traffic, truck and trailer cabling,  modern systems such as Ad-Blu tanks and pump systems, exhaust systems and tail lights can be controlled.

Due to the tool-free slider locking, the connector is connected to the component in a vibration- and loss-proof manner. This ensures permanent contact pressure, especially for safety-relevant systems such as brake lights.

To ensure a continuous IP67 protection from housing to cable CONEC developed the overmoulded HDSCS connector series. CONEC HDSCS connectors withstand extreme external environmental influences, vibrations and mechanical stress and are therefore particularly suitable for applications in harsh environments. The overmoulding is made of polyurethane (PU) and offers high resistance to chemicals and is abrasion resistant.

CONEC HDSCS connector systems are electrically tested and tamper-proof. Mismating is not possible by taking appropriate measures according to the poke-yoke principle.

Different cable lengths (standard lengths: 2.5.10 m) allow individual installation and cabling of the components.

CONEC currently offers the 8-pin connector type C, which can be used with LED taillights from leading manufacturers in trucks and trailers.

Other applications, as described above, or customised solutions with an additional connector at the free cable end or other variants of the HDSCS connector are possible.

Advantages

  • Standardised type C connector for a wide range of applications
  • Full assignment of the 8-pin connector and the cable with inner wires of different colours to use the full range of features
  • Due to the overmould, continuous IP67 protection from the housing to the cable
  • Tool-free, safe and quick locking
  • Individual routing and assembly of the free cable end
  • High reliability for a long period of use due to modern plastic material

Fields of application

  • Emergency vehicles – municipal technology
  • Agricultural and construction machinery
  • Heavy goods traffic
  • Off-roadvehicles
  • Transport industry
Über die CONEC Elektronische Bauelemente GmbH

For more than 40 years, CONEC Elektronische Bauelemente GmbH has been developing, producing and marketing high-quality connectors, patch cable and single ended cable as well as enclosure technology.
CONEC products are used in automation, telecommunications and energy technology, machine manufacturing, agriculture and medical technology, transportation and the aviation industry.

The headquarters in Lippstadt has a large research and development department, its own tool-making department, a CNC-turning department and a synthetics injection moulding plant.

As part of the Amphenol Group, CONEC participates in the growth and development opportunities of a globally active group and at the same time acts flexibly and quickly as a medium-sized company in order to optimally adapt to changing customer needs.

In addition to a variety of connectors for all current standards, our particular strength is the integrated moulding of components and assemblies and the development of customized solutions.

CONEC is a global player with its own subsidiaries and/or production sites in Canada, the USA, China, the Czech Reblublic, Poland and Slovakia.

The product portfolio includes connectors of the following categories:

• D-SUB/IP67 D-SUB Connectors
• IP67 RJ45 / USB / Mini USB / Fiber Optic LC Duplex
• CONEC Hybrid Connectors
• Connectors for agricultural and construction machines
• Circular Connectors
• PCB Connectors
• Customer specific solutions

The company’s quality management ensures high quality by applying the international standards DIN EN ISO 9001. Depending on the product family, CONEC industrial connectors are tested and approved in accordance with UL, CSA or VDE.
