The plastic enclosures are available from stock in two different sizes and heights: 101 x 50 x 22/26 mm and 121 x 62 x 26/31 mm (overall length with flange x width x height). From now on there are 2 more versions with 147 x 78 x 30/37 mm (version 125) and "150" with 172 x 93 x 36/46 mm. The enclosures are in the standard colour off-white (RAL 9002) and are made of ASA+PC-FR material (UV-resistant). Other colour versions can be requested. For the best possible protection indoors as well as outdoors, a seal (protection class IP 65) is available as an accessory. PCBs can be installed in the top part and/or in the bottom part. Suitable self-tapping screws for mounting the PCBs are included in the range of accessories.

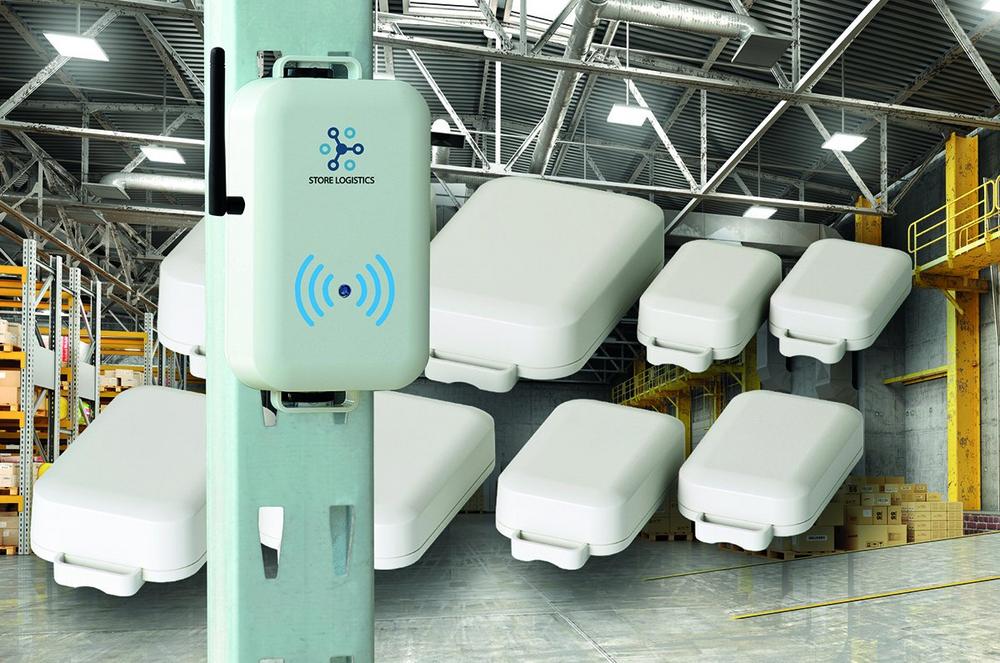

EASYTEC enclosures have permanently integrated lugs on the short end faces of the bottom part. These allow the devices to be quickly mounted on the wall (horizontally or vertically), but can also be used for easy installation on tubes/round profiles. A rounded recess on the underside of the enclosure visually and technically supports the latter application on tube systems. EASYTEC enclosures can be modified as required: with printing, laser marking, painting, mechanical machining for interfaces/LEDs, EMC coating on the inner side of the enclosure, as well as assembly work.
Gehäuse und Drehknöpfe
OKW bietet formschöne, ergonomisch günstige Standardgehäuse und Drehknöpfe aus Kunststoff und Aluminium für die OEM Elektro- und Elektronik-Industrie. Abgestimmt auf die jeweilige Kundenanwendung ergänzen funktionale Zubehörteile, eine EMV Aluminiumbeschichtung sowie elektromechanische Komponenten die Standard-Produkte auf vielfältige Weise. Bei Bedarf liefern wir die Gehäuse und Drehknöpfe einbaufertig – auch in kleinen Stückzahlen – nach Ihren Anforderungen und Wünschen.
Standard Electronic Enclosures and Potentiometer Tuning Knobs Smart ergonomic standard enclosures and potentiometer knobs for OEM electronics. OKW’s award-winning aesthetic designs will transform your products. View our huge range of plastic and aluminium cases as well as tuning knobs below. Our designs are highly versatile so you can find the cases you need quickly and easily. Products also include membrane keyboards; contacts and connections; EMC shielding; compatible parts (batteries, displays, emitters, potentiometers, screws etc.). All OKW enclosures can be customised to your precise requirements – even in low volumes – ready for your PCBs.
