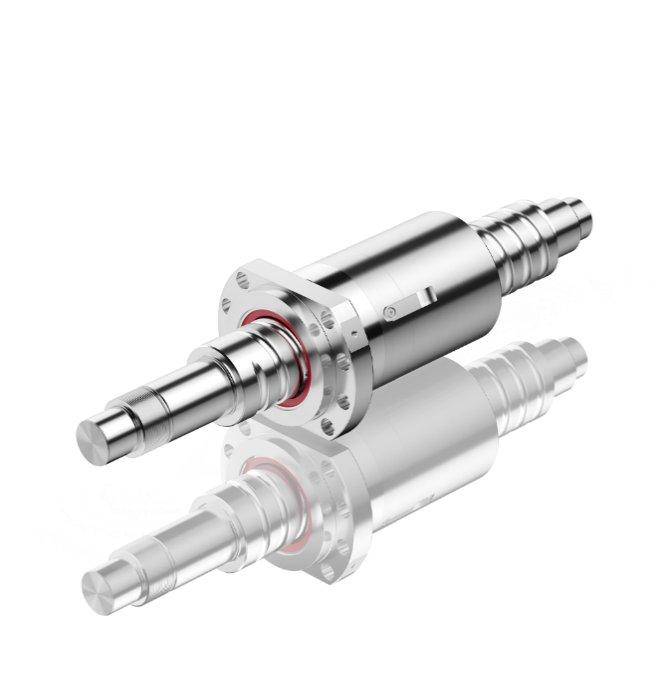

Ball screws for demanding applications

Schneeberger is expanding its extensive linear technology portfolio with the new SBS ball screws. Always in focus: optimum precision and economic feasibility. In order to ensure these characteristics over the long term, the ball bearing raceways, bearing seats and contact surfaces of the ball screws are precision ground. The spindle outer diameter that is ground with the bearing seats in the same clamping process combines a two-fold benefit. Sven Vitt, the SBS Project Manager at Schneeberger, explains: "On the one hand, the ball screw can be aligned to the spindle outer diameter, and on the other hand, the efficiency of the wiper systems is significantly increased." Vitt ascribes equal importance to the induction-hardened spindle and the through-hardened nut.

Overall, the precise and hard ball contact surfaces enable optimum force transmission with extremely high positioning and repeat accuracy. In addition, Schneeberger ball screws stand out due to their quiet, torque-constant running behavior. Equally important are the accompanying low heat generation, minimal wear and long service life.

All these characteristics set new standards for use in demanding sectors, including the machine tool industry, measurement and testing technology, drive and process technology as well as robotics and automation. Depending on requirements, the SBS is available with spindle diameters of 32 mm, 40 mm, 50 mm and 63 mm. The manufacturer specifies a maximum thread length of 2,000 mm for all sizes. The implementable increases in speed are 1.5 g and the maximum speeds 96 m/min. The accuracy class according to ISO – type P is IT3. Schneeberger application  technicians and engineers are always ready to assist with the evaluation and design of customer projects.

NEW: Virtual showroom

Receive information on all SCHNEEBEGER products completely independent of time and place on your own terminal device – this is possible from now on. We present our new virtual SCHNEEBERGER showroom, which allows an individual tour of a specially designed booth.

A detailed 3D showroom awaits you, the use of which is accompanied by a virtual assistant. For each SCHNEEBERGER product, the entire range of information is presented, from the catalog to the assembly instructions and videos.

Thanks our range of products, our company covers the areas of application in a wide variety of industries. Which SCHNEEBERGER product is the right one always depends on the respective application. Accordingly, our range as an innovation leader is diverse.

Find out more about the various areas of application for SCHNEEBERGER products and take advantage of the opportunity to receive advice on customized solutions via our contact form.

You can find this novelty on our website www.schneeberger.com  or with a direct link via https://virtual.schneeberger.com/en/
