The simple construction and smooth, wetted surfaces of the new liquid end serve as the basis for the virtually gap-free and dead room-optimised Hygienic Design, making easy Cleaning-In-Place (CIP) and rapid disassembly possible. The sealing surfaces are designed in line with the latest guidelines and feature the required minimum radii. The properties of the new ball non-return valves have been optimised in terms of fluid dynamics and ensure optimum turbulence at critical points. All the liquid end’s wetted materials are physiologically safe in accordance with FDA and EN Regulation 1935/2004. What’s more, the surfaces undergo a final electropolishing stage and have a surface roughness of Ra ≤ 0.8 μm. The pump is integrated into the production process using a tri-clamp connector according to DIN 11864-3.
Safe and efficient

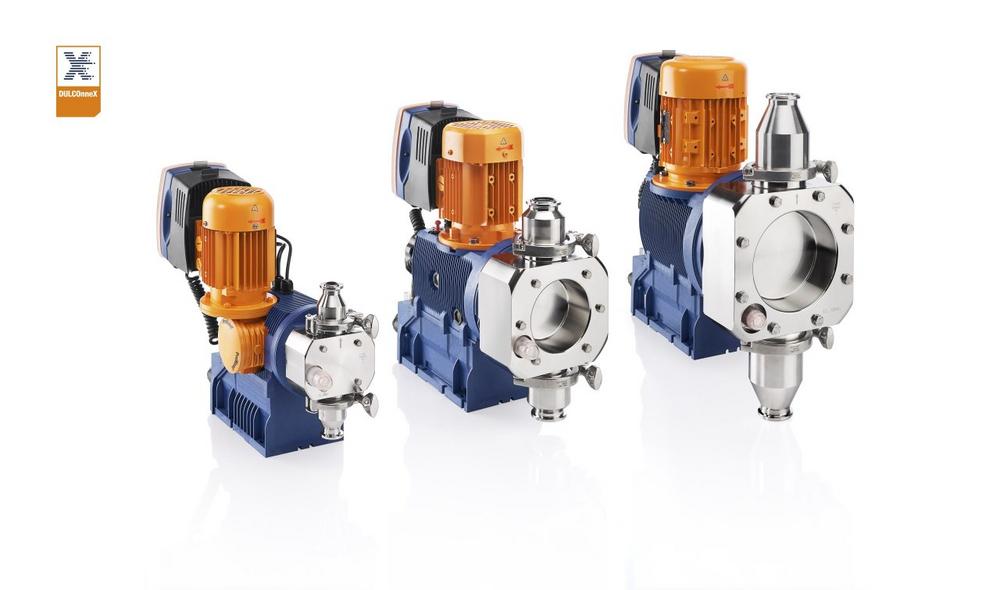

The new motor-driven metering pump Sigma X in the Hygienic Design enables reliable CIP without the liquid end having to be disassembled, so it can be cleaned quickly, reliably and efficiently, thereby minimising the risk of bacterial contamination. The option of cleaning at temperatures of up to 130° Celsius also reduces fresh water consumption and the amount of waste water produced as well as demand for cleaning agents. The short cleaning, tooling and idle times ensure good system availability.
The metering chamber is hermetically sealed and has no shaft passage. A PTFE multi-layer diaphragm with diaphragm rupture control in the standard version of the pump offers additional process reliability.
Like all intelligent ProMinent metering pumps, the Sigma X product range in the Hygienic Design can be flexibly networked. The pumps are connected to process control systems via potential-free contacts, a 0/4-20mA standard signal or by networking using the integrated PROFIBUS®, CANopen interface.
PROFIBUS® is a registered Trademark of the Profibus Nutzerorganisation e.V.
The ProMinent Group is a manufacturer of components and systems for metering as well as a reliable solution partner for water treatment.
ProMinent offers practical solutions for various industries through innovative products, a distinctive and long-term understanding of processes and strong application orientation. With this, ProMinent supports its customers worldwide in terms of safety, efficiency and environmental protection.
The Group is headquartered in Heidelberg, Germany. More than 2,700 employees in about 50 own sales and service companies as well as 11 production sites work hard to provide individual solutions and high-quality services to ProMinent customers in about 100 countries.
The ProMinent Group provides solutions for metering, water treatment and disinfection, measuring and control as well as digital fluid management for the following industries:
Chemical industry, industrial and municipal water treatment, food and beverage industry, treatment of swimming pool water, oil and gas industry and process industry.
The extensive product portfolio consists of metering pumps, peristaltic pumps, measuring and control technology and sensors to manage and meter fluids as well as metering systems for water treatment. For this purpose ProMinent provides all common systems, such as chlorine dioxide plants, chlorine gas metering systems, electrolysis systems, UV systems, ozone systems as well as systems for membrane filtration.
In order to be a long-term partner for its customers, the Group is investing constantly both in product innovations as well as in state-of-the-art manufacturing processes and a high level in-house production. 11 worldwide production facilities consistently guarantee high quality, flexibility and delivery reliability.
