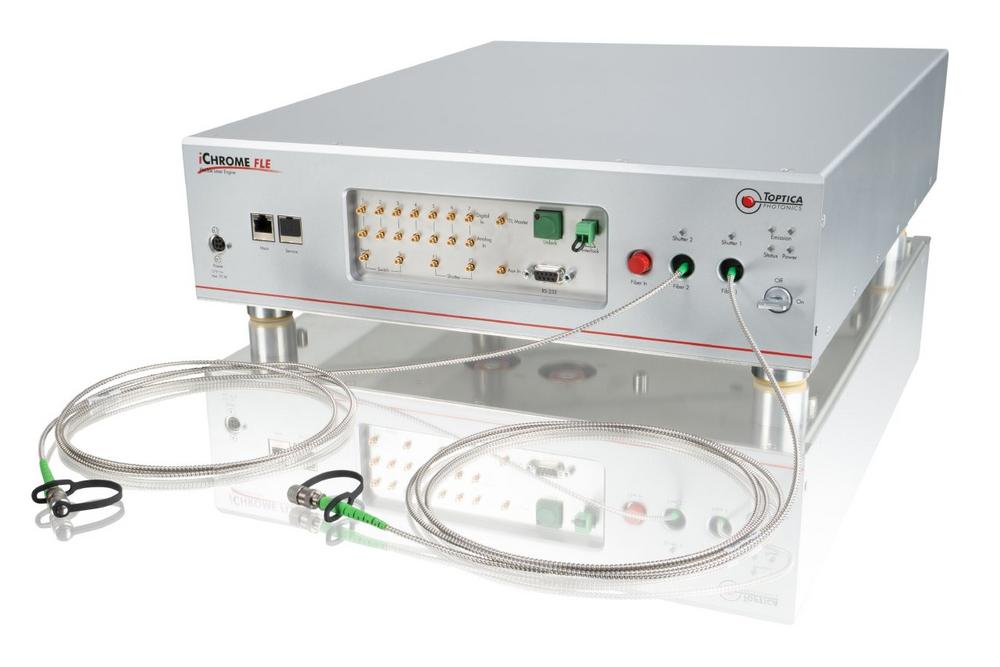

iChrome FLE – Flexible Multi-laser Light source for Biophotonics

The latest member of the iChrome family, the iChrome FLE, is designed as a "flexible laser engine" to serve the numerous and very diverse requirements in biophotonics. Up to 7 wavelengths (between 405 and 785nm) and two fiber outputs can be integrated into the iChrome FLE. The fiber outputs can be configured separately, so that individual wavelengths (e.g. UV or IR) can be corrected separately in the application. Alternatively, a fiber switch/splitter can be installed, allowing each wavelength to be switched separately to one of the two fibers, or to distribute the power between both fibers.

The numerous laser requirements from microscopy were decisive for this development. For example, some imaging techniques require multiple, switchable fiber outputs in addition to the large number of wavelengths, such as in confocal microscopy in combination with wide-field illumination (fiber switching). In other applications, such as light sheet microscopy (aka SPIM), multiple light sheets are often used, which need to be illuminated with exactly the same intensity (fiber splitter). Like all iChrome laser engines, the iChrome FLE features fully automatic adjustment, which ensures consistent laser output and easy "no screwdriver" installation.

Key Features:

Automatic alignment technology COOL^AC
Complete-off, zero photons in off state
AOM/AOTF free, no cross talk between wavelengths
2 fibers with fiber switch and unique variable splitter

Key Applications:

Flow cytometry
Confocal microscopy
Live-cell imaging
TIRF
FRAP
High throughput screening
Genome analyzers
Optogenetics

For more information, please visit our website: www.toptica.com/flexible

Über die TOPTICA Photonics AG

TOPTICA has been developing and manufacturing high-end laser systems for scientific and industrial applications for 20 years. Our portfolio includes diode lasers, ultrafast fiber lasers, terahertz systems and frequency combs. The systems are used for demanding applications in biophotonics, industrial metrology and quantum technology. TOPTICA is renowned for providing the widest wavelength coverage of diode lasers on the market, providing high-power lasers even at exotic wavelengths.

TOPTICA’s employees take pride in developing customized systems. In close collaboration with several universities and institutes, latest scientific discoveries are frequently incorporated into commercial products. With a global distribution network, TOPTICA provides exceptional service worldwide. With 340 employees TOPTICA earned revenue of 76 million Euro.
