Tomorrow’s technology today

Presenting the latest generation of SAM 4.0 – the master control system for all your compressed air production and treatment components. It optimises pressure values, automatically adjusts compressor system air delivery to accommodate fluctuating pressure demand and optimises system efficiency based on control losses, switching losses and pressure flexibility. Moreover, the SAM 4.0 enables your compressed air station to take advantage of future services such as Sigma Smart Air, for predictive maintenance. All of these features not only boost operational reliability and efficiency, but also significantly reduce energy costs.

Best possible pressure quality, tailored to specific needs

This is in no small part made possible by Kaeser’s adaptive 3-D advanced Control, which takes into account additional factors, aside from switching losses (start/stop), that affect compressed air system energy efficiency. These include control and idling losses, frequency converter operation and pressure flexibility (average increase above required pressure). The patented optimisation method predictively calculates the optimum achievable configuration and adjusts the connected components accordingly – all based on the specific pressure required by the user.

When machines talk

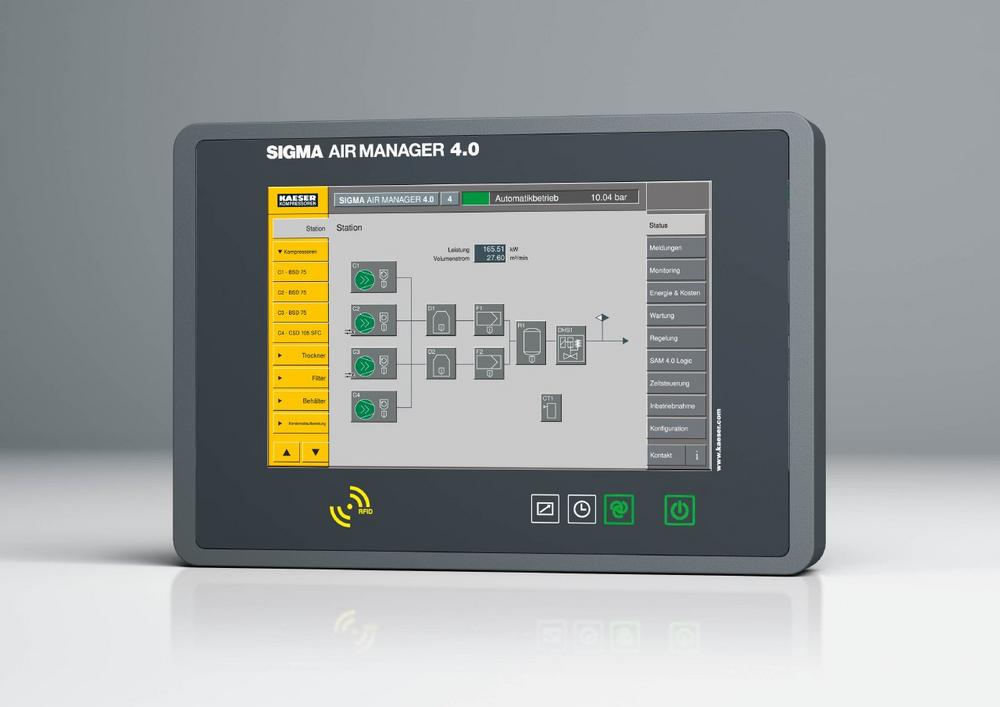

The SAM 4.0 supports operation in 30 languages, while the easy-to-use 12-inch colour touchscreen shows at a glance whether the station is operating in the ‚green zone‘ from an energy management perspective. Operating status, pressure history, free air delivery, power consumption, as well as maintenance and any error messages can be easily displayed and analysed – both in real-time and retroactively. Using a PC and network connection, this data can be accessed conveniently from anywhere, not just at the machine itself. This not only gives users peace of mind and lays the foundation for digital products in the pipeline, it also enables energy management in accordance with ISO 50001.

Sigma Network

The far-reaching benefits of the SAM 4.0 are expanded even further when users take advantage of Kaeser’s Sigma Network. Based on Ethernet technology, the powerful Sigma Network is a closed and secure network that has been specially developed to support optimal monitoring and coordinated control of compressed air stations.

SAM 4.0: Future-ready

Moreover, the SAM 4.0 is versatile in other ways. An interface for plugin communication modules lends itself to flexible adaptation to accommodate future requirements. The SAM 4.0 is up to date with the latest trends and ensures the reliable, cross-system exchange of data and information.

SAM 4.0: Upgradable

The SAM 4.0 is designed to accommodate potential future compressed air system expansion. A straightforward software upgrade allows for expansion with no need for additional investment in new hardware.
