Making CLACK softeners safer & more efficient

The automatic triggering of the regeneration on the CLACK control head takes place when the configured hardness limit value is exceeded. The prerequisite is the constant analysis of the quality and the throughput of soft water per column.

Softcontrol Clack can be installed on every water softener with sodium chloride regeneration and CLACK control heads of the TWIN types; WS 1.0; WS 1.5; WS 2.0 or WS 3.0. Commissioning and operation is also uncomplicated. Subsequent installation in an existing system is also feasible.

All operating data are electronically recorded chronologically and stored in the device. The additional yield of soft water and the number of regenerations are among other important recorded information. In addition, the flow rate and the savings achieved are recorded for each softening column.

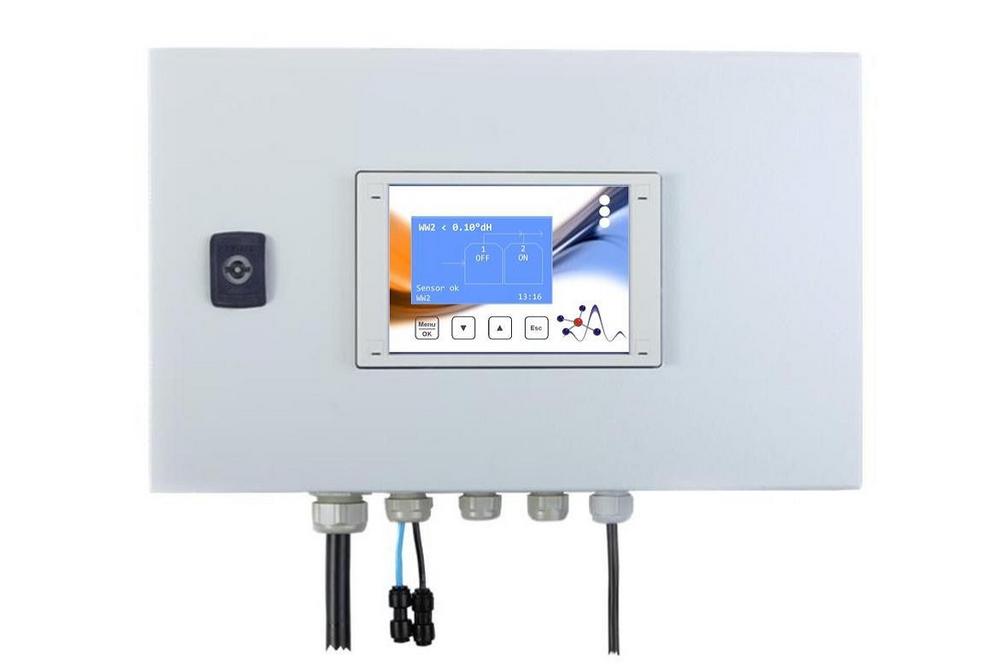

The device status and hardness rating can be clearly read on the display on site. At higher process levels, data communication takes place via LAN interface (modbus). The operational data is saved in the readable USB stick.

The cyclical self-monitoring of the device and the measuring functions contributes significantly to the safe process flow. In addition, the constant checking of the water quality and flow rate increases the reliability of the system. Password-protected parameter levels, which prevent impermissible changes to setting parameters, provide additional protection.

Softcontrol Clack works ecologically and cost-effectively, as no reagents or indicators are required. All measurements are carried out by an ion-selective sensor for calcium and magnesium ions.

Optionally, the brine / salt storage tank of the softener can also be monitored with the OFS product SALIS and a wireless alarm can be triggered by e-mail if a WLAN network is available. In conjunction with SALIS, comprehensive protection of the entire water softener system is provided.
