Anatomy of a high performer
The HARVI I TE ball nose end mill features an innovative proprietary relief that requires a closer look. In the most critical area – the ball nose section – a wavy contour shapes the rippled relief which provides improved coolant flow into the cutting zone.
Maximum productivity, maximum tool life in 3D milling operations: The HARVI I TE four-flute ball nose end mill with the rippled relief in the ball nose section.
The rippled relief enables higher feeds and speeds as well as increased depth of cuts by advanced vibration damping and lower cutting forces.
On the outer diameter, the relief changes its shape, and turns into the eccentric faceted relief. The eccentric faceted relief provides exceptional edge strength, geometric accuracy, lower cutting forces and makes this end mill series very versatile.
Other geometry advancements of the square end styles —including a twisted end face, chip gashing, and a variable helix angle—have also been engineered into this new solid carbide end mill.
The offering
The HARVI I TE ball nose end mill is available in two different lengths, both with a diameter range from 2 to 20 mm (1/16" to 1"). The regular length is the first choice for 3D copy milling operations, while the long version offers sufficient length-of-cut (up to 4sD) for many applications, including shoulder milling when wall and floor finishing is required.

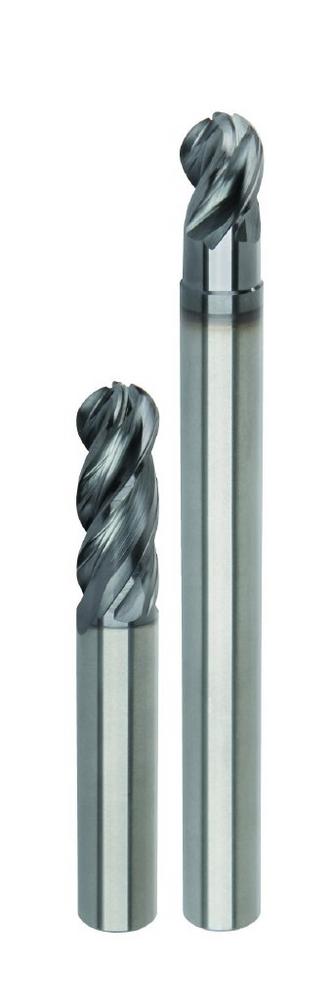

The HARVI I TE ball nose end mill is available in two different lengths: regular (inch non-necked, metric with neck) and long.
With over 80 years as an industrial technology leader, Kennametal Inc. delivers productivity to customers through materials science, tooling and wear-resistant solutions. Customers across aerospace, earthworks, energy, general engineering and transportation turn to Kennametal to help them manufacture with precision and efficiency. Every day approximately 9,000 employees are helping customers in more than 60 countries stay competitive. Kennametal generated nearly $1.9 billion in revenues in fiscal 2020. Learn more at www.kennametal.com. Follow @Kennametal: Twitter, Instagram, Facebook, LinkedIn and YouTube.
