31.2″ Open Frame E-Paper Display

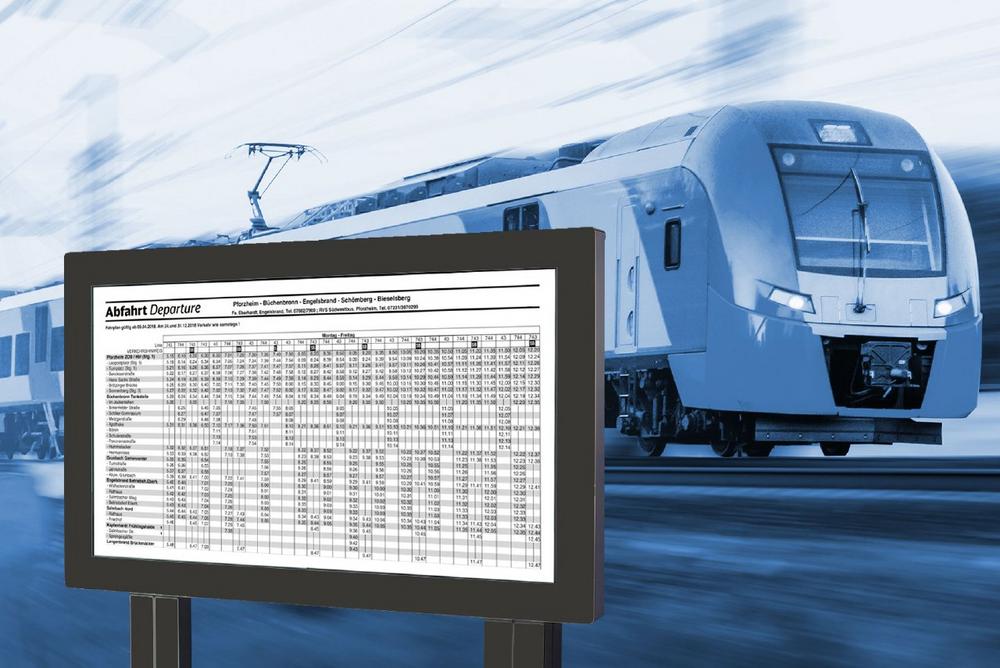

With the EPD-3133 e-paper display, Avalue Technology presents an alternative to conventional display solutions. The 31.2" display element offers a black and white display as well as 16 grey levels with a maximum possible viewing angle of 180 degrees. According to the manufacturer, very good readability even in the brightest of environments is guaranteed. Due to the bistability of e-paper technology, power consumption is only required to change displayed content. The display develops only minimal heat during operation. The flat open-frame design allows easy integration into applications such as public information systems, real-time timetables and public transport signage. The e-paper display is available with the operating systems Win 10 IoT or Android 8.1. Several individual displays can be combined to form a large display. Available interfaces are 1 x SATA III, 2 x HDMI 1.4, 1 x COM, 2 x LAN and 4 x USB 3.0. Options for Wi-Fi and BT function as well as PCAP Touch and Front Light Module are available.

To speed up the time to market, Avalue supports the connection between frontend and backend APIs and provides developers with sample code.

Further information is available at www.trs-star.de.
