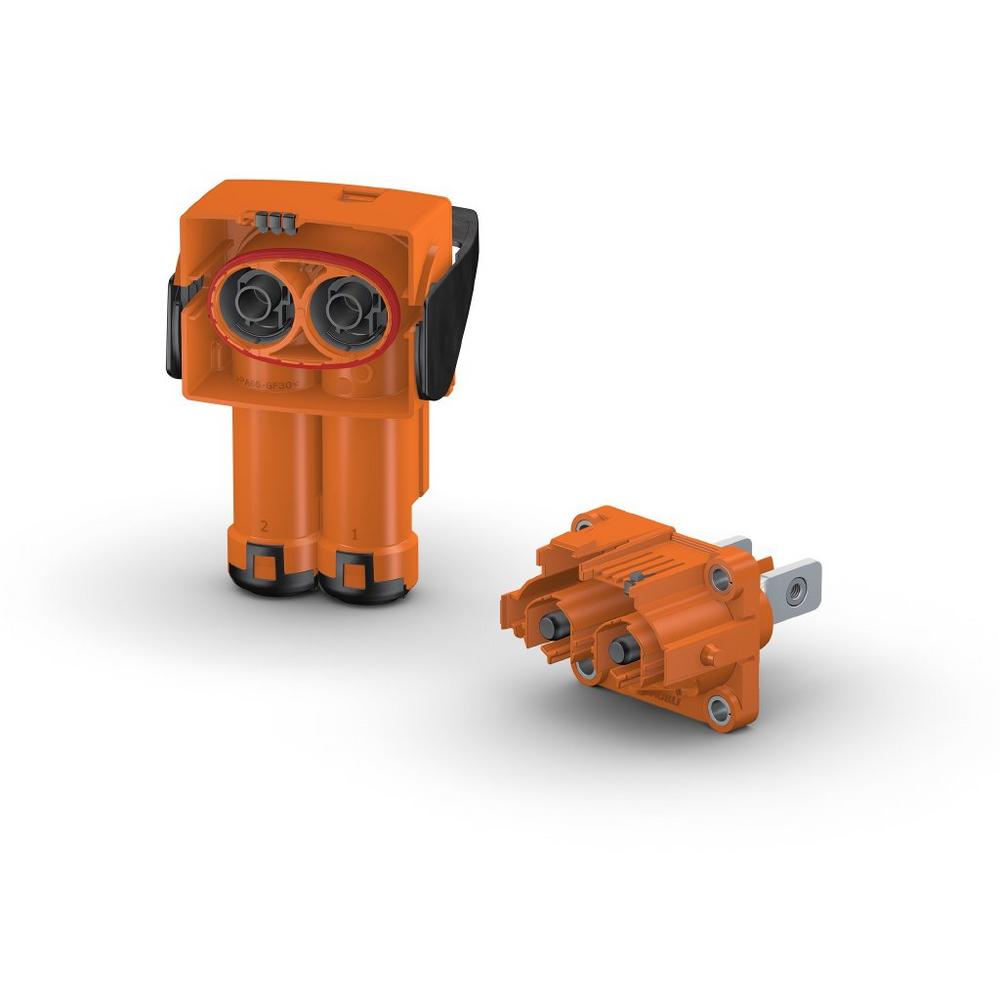

Stäubli connectors for e-mobility: PerforMore high-voltage connector

With PerforMore, Stäubli Electrical Connectors introduces a connector that’s designed in accordance with all applicable guidelines and with a specific focus on user-friendly handling. With its impressive performance characteristics, this two-pole high-voltage connector offers maximum flexibility for electric vehicle manufacturers. It can be used in a wide range of drive-train interfaces, including batteries, inverters and high-voltage distribution units.

For many years, Stäubli Electrical Connectors has successfully offered a range of connector solutions developed to meet the needs of the growing e-mobility market. High-quality contacts provide secure power transmission even under tough environmental conditions, along with significant safety improvements throughout the vehicle. PerforMore is the first connector developed specifically for use in the electric drive train of mass-produced electric vehicles.

The name says it all: Top performance and durability for the next generation of electric vehicles, which require both high currents and time-saving installation procedures. With a current-carrying capacity of 400 A at an ambient temperature of 85° C, extremely compact dimensions and high vibration resistance, PerforMore is suitable for use in a wide range of vehicle types. It can be used in a variety of drive-train interfaces, including high-voltage batteries, power inverters or high-voltage distribution units (HVDUs).

A two-step unlocking mechanism, HVIL contacts, IP2X ingress protection and high-quality EM shielding provide increased user safety. PerforMore is fast and easy to install, thanks to an integrated lever that ensures quick locking. Mechanical and color coding makes it easy to match connector pairs and prevent incorrect connections. Installation is as simple as can be: Assembly with pre-assembled cables is only possible in the specified direction, improving user-friendliness while also lowering vehicle manufacturing costs.

Statement:

"Our PerforMore is perfectly designed to enable the high drive power and currents as well as a voltage levels of 800 V and more for the next generation of electric vehicles, thus fully supporting developers on their way into the future of e-vehicles".
Winnijar Kauz, Product Manager E-Mobility, Stäubli Electrical Connectors

PerforMore connector system:

  • Compact design (especially when connected)
  • 10 mm contacts provide high current-carrying capacity (especially in combination with a welded connection), up to 400 A
  • High withstand voltage of up to 1000 V
  • Very tight connection (IP68 for 1 hour at max. depth of 1 m and IP69)
  • High quality EM shielding
  • High vibration resistance
  • Mechanical and color coding
  • Quick, easy installation
Über die Stäubli Electrical Connectors AG

Stäubli offers innovative mechatronic solutions in three core areas including Connectors, Robotics and Textile. Founded in 1892, today Stäubli is an international group headquartered in Pfäffikon, Switzerland with more than 5,500 employees worldwide. Stäubli has a presence in 29 countries with production companies, sales and service subsidiaries and is supplemented by agents in 50 countries. As a world market leader in the field of connectors, Stäubli manufactures quick connector systems for all types of fluids, gases and electrical energy. The Electrical Connectors product portfolio (formerly Multi-Contact) ranges from miniature connectors to high-performance connectors for power transmission, industrial automation, transportation, test and measurement. In Photovoltaics, Stäubli is the global market leader with its MC4 connector components. The core of all Stäubli electrical connectors is the unique MULTILAM technology.
